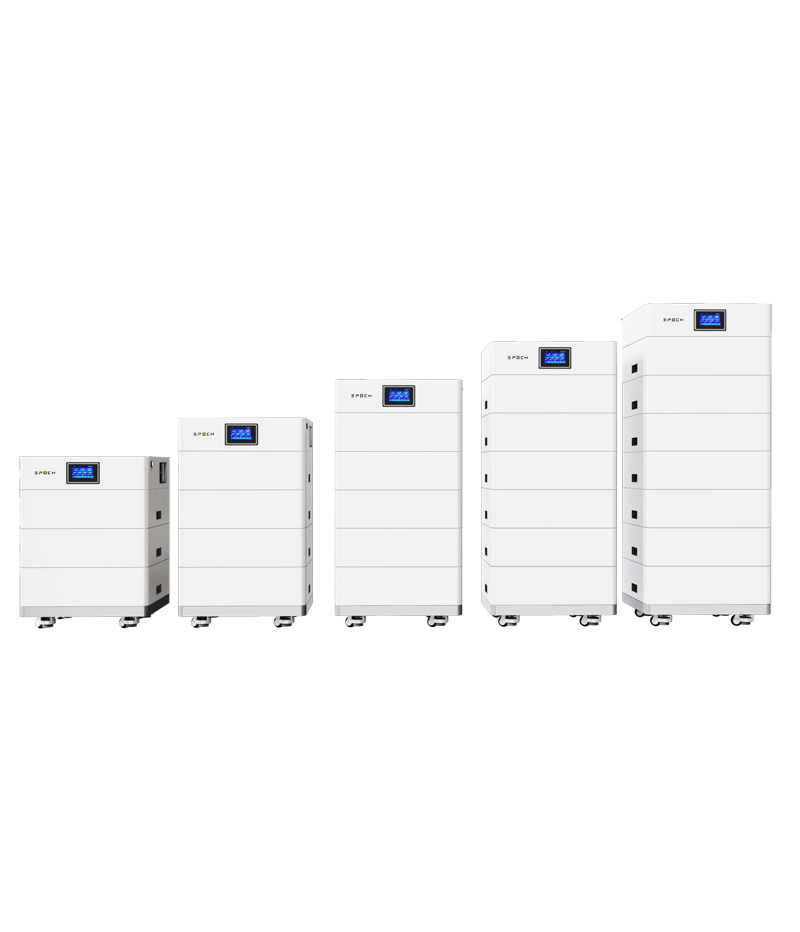

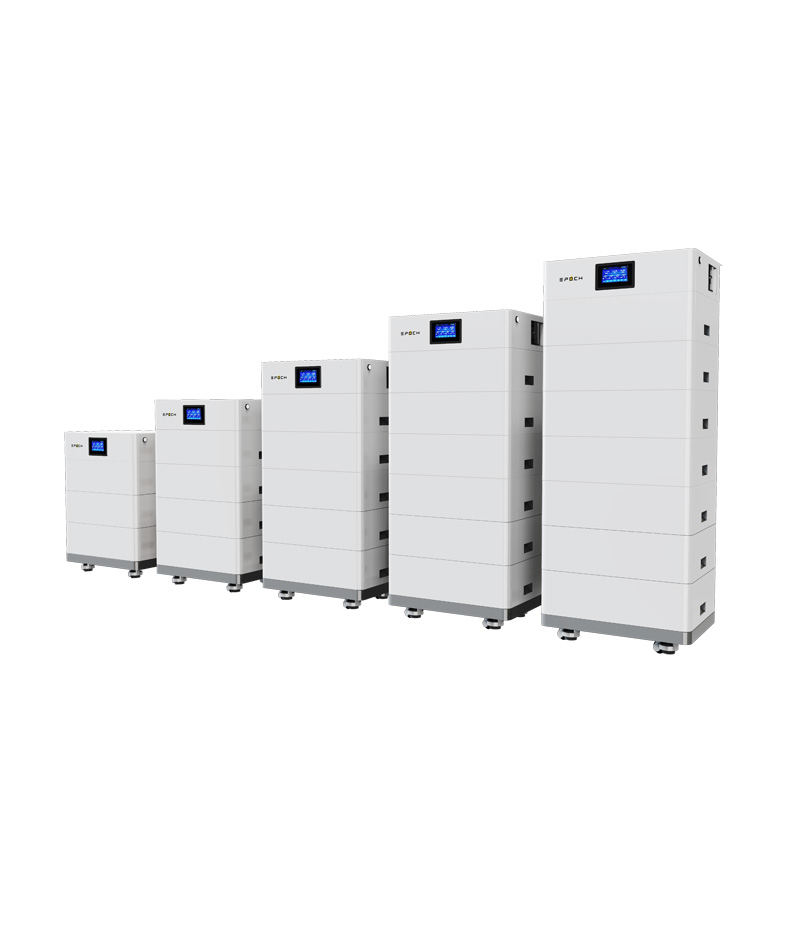

ES-HV-100Ah
- Maximum capacity of 35.84 kWh 8000+ charge cycles with a maximum stacking capacity of 10 units
The ES-HV-100Ah is a high-voltage energy storage solution specifically engineered for residential applications. With a maximum stacking capacity of 10 modules, it delivers an energy coverage range of 15.36kWh to 35.4kWh. The system supports discharge rates up to 0.5C while achieving over 97% DC-side charge-discharge efficiency, ensuring flexible and efficient installation. Its intelligent power management system provides users with unparalleled energy utilization autonomy.
Product features
-
Intelligent Management
It supports real-time battery health monitoring, remote fault diagnosis, and one-click intelligent upgrades. -
Install Automation
Installation is time-saving and effortless. The bottom wheel design makes it easy to move. -
Long-term Reliability
This product utilizes lithium iron phosphate (LFP) battery cells, known for their safety and reliability. It offers a cycle life of over 8,000 cycles and is backed by a 10-year warranty. -
Sophisticated Color Scheme
Products in various colors and styles are available for your selection. -
On-Demand Capacity Expansion
The product supports stacking of up to 10 units, providing scalable energy coverage ranging from 15.36 kWh to 35.84 kWh. -
Rapid Charge and Discharge
A maximum charge/discharge current of 50A ensures an uninterrupted household power supply. -
Low-temperature Self-heating (Customized)
Operating temperature range:-20°C to 55°C
Technical Parameters
-
Product Model ES-153.6V100Ah Battery Type LiFePO4 Rated Capacity 15.36 kWh Cycle-index 8,000 cycles /10-year warranty
IP rating IP65 Number of Battery Modules 3 Net Weight 114Kg Product Dimensions (WxHX D) 600*428*770mm(无壁挂式支架)
Capacity Expansion 10 -
Product Model ES-256V100Ah Battery Type LiFePO4 Rated Capacity 25.6 kwh Cycle-index 8,000 cycles /10-year warranty
IP rating IP65 Number of Battery Modules 5 Net Weight 200Kg Product Dimensions (WxHX D) 600*428*1090mm(无壁挂式支架)
Capacity Expansion 10
Related Products
-
ES-LV-314AhES-LV-314Ah16.08 kWh/8,000+ cycles, with a maximum parallel connection capacity of 6 units
-
ES-HV-100AhES-HV-100AhES-HV-100Ah Up to 35.84 kWh per modular adaptive stackable unit
-

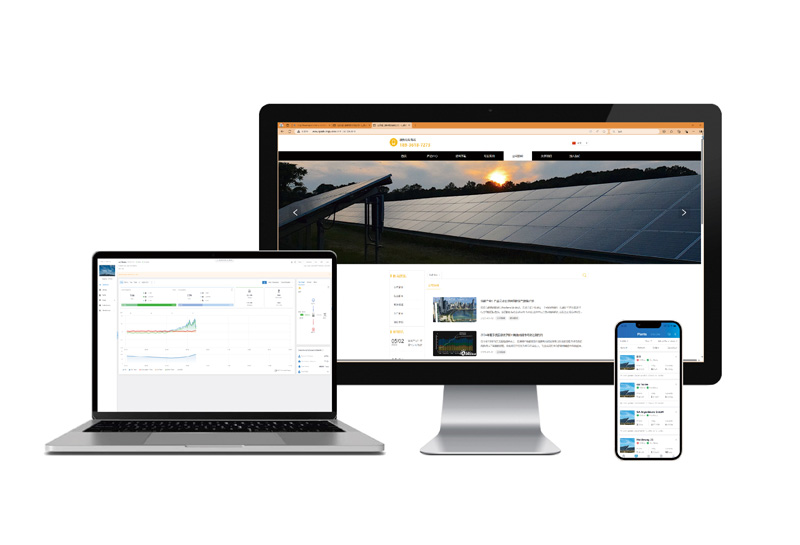

Intelligent Energy Storage Management Cloud PlatformIntelligent Energy Storage Management Cloud PlatformNew energy systems, energy storage, and safety visualization/real-time monitoring
